Reverse unictf2020

I posted here solutions for tasks from unictf 2020.

Hello world

First challenge is in the trustzone. We open task1 in Ida, check strings window and see strings like TEEC_FinalizeContext,TEEC_InvokeCommand,TEEC_CloseSession. We can find it in Google and will get the client specification and the GlobalPlatform API tee specification with prototypes of these functions. It will help during reverse of all tasks.

TEEC_Result TEEC_InvokeCommand(
 TEEC_Session* session,
 uint32_t commandID,
 TEEC_Operation* operation,
 uint32_t* returnOrigin)

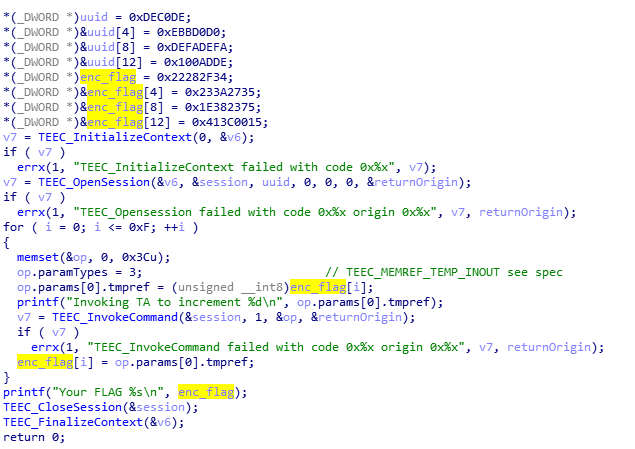

In the main function rename the variables, create TEEC_Operation struct like this

typedef struct
{
 uint32_t started;
 uint32_t paramTypes;
 TEEC_Parameter params[4];
 uint32_t imp;
} TEEC_Operation;
typedef union
{
 TEEC_TempMemoryReference tmpref;
 TEEC_MemoryReference memref;
} TEEC_Parameter;

In our challenge binary is 32bit, hence reference and uint32_t has the same size. The client invoke command with id 1, remember it and open TA.
We try open TA in ida and see that is opening as blob. We open it in some hex editor and have seen ELF signature, cut first 0x148 bytes(it’s just a sign), reopen in IDA and it’ll work fine. We see one call on the start function. We check it and will find nothing

BLX sub_CF24
NOP

We check it with file utility

$ file 00dec0de-d0d0-0ebb-fade-fadedead0001.ta
00dec0de-d0d0-0ebb-fade-fadedead0001.ta: ELF 32-bit LSB shared object, ARM, EABI5 version 1 (SYSV), dynamically linked, stripped

We check strings and will find some interesting: Got value: %u from NW. It get value from normal world and maybe it is one of handlers. We check reference to this string and found function sub_114 witch called from sub_1E4 when second arg is 1 (Hmmm)

signed int __fastcall sub_1E4(int a1, int a2, int a3, _DWORD *a4)
{
  signed int v4; // r3

  if ( a2 == 1 )
    v4 = dec_value(a3, a4);
  else
    v4 = 0xFFFF0006;
  return v4;
}

And….

signed int __fastcall dec_value(int a1, _DWORD *a2)
{
  int v7; // [sp+10h] [bp+0h]
  int v8; // [sp+14h] [bp+4h]

  v8 = 3;
  v7 = 0;
  log_35E((int)"dec_value", 0x4D, 3, 1, "has been called");
  if ( a1 != 3 )
    return -65530;
  log_35E((int)"dec_value", 81, 3, 1, "Got value: %u from NW", *a2);
  getprop_1F96(-1, (int)"unictf.2020.data.key", (int)&v7);
  *a2 ^= v7;
  log_35E((int)"dec_value", 84, 3, 1, "Return value is: %u", *a2);
  return 0;
}

It just xoring argument with some value, brutefroce this value or try find "unictf.2020.data.key" in binary

int __fastcall getprop_1F96(int a1, int prop, int buf)
{
  v8 = v3;
  v5 = 4;
  if ( buf )
  {
    v6 = 1;
    v7 = sub_1B26((int *)a1, prop, &v6, buf, (int)&v5);
    if ( v6 != 1 )
      v7 = 0xFFFF0005;
  }
  else
  {
    v7 = 0xFFFF0006;
  }
  if...
  return v7;
}

int __fastcall sub_1B26(int *a1, int a2, _DWORD *a3, int a4, int a5)
{
  if...
  v22 = sub_1964((int)a1, &v18, &v17);
  if...
  return v22;
}

signed int __fastcall sub_1964(int a1, _DWORD *a2, _DWORD *a3)
{
  switch ( a1 )
  {
    case (int)0xFFFFFFFF:
      *a2 = &off_10238;
      *a3 = 9;
      return 0;
    case (int)0xFFFFFFFE:
      *a2 = 0;
      *a3 = 0;
      return 0;
    case (int)0xFFFFFFFD:
      *a2 = &off_102A4;
      *a3 = 3;
      return 0;
  }
  return -65528;
}

And we got offset with defined props, props table have struct like this

struct prop{
    char* name;
    uint32_t type;
    char* value;
}

We got xor key! Just xor bytes from client and get flag unictf{b4by_TA}

.data:00010298                 DCD aUnictf2020Data_1   ; "unictf.2020.data.key"
.data:0001029C                 DCD 1
.data:000102A0                 DCD unk_D990
...
.rodata:0000D990 unk_D990        DCB 0x41 ; A

flag = [0x34,0x2f,0x28,0x22,0x35,0x27,0x3a,0x23,0x75,0x23,0x38,0x1e,0x15,0x00,0x3c,0x41]
for i in flag:
    printf(chr(i^0x41),end="")

File encryption

The next task is a little harder than the previous. We open task2 in IDA and see that file not stripped, cool!

int __cdecl main(int argc, const char **argv, const char **envp)
{
  const char *v3; // r3
  char *v4; // r2
  int v7; // r0
  int v8; // r1
  _WORD *v9; // r4
  const char *v10; // r4
  int v11; // r7
  int v12; // r0
  int v13; // r6
  size_t size; // r7
  void *key_der; // r4
  size_t v16; // r0
  int mode; // r3
  int file; // [sp+0h] [bp-40h]
  char ses; // [sp+4h] [bp-3Ch]
  char v21; // [sp+14h] [bp-2Ch]

  v3 = "SUPERSECRETSTRING";
  v4 = &v21;
  do...                                         // cp v3 to v21
  *v9 = *(_WORD *)v3;
  if ( argc != 3
    || (v10 = argv[1], v11 = strcmp(argv[1], "decrypt"), v12 = strcmp(v10, "encrypt"), v13 = v12, v11) && v12 )
  {
    puts("Usage task2 <encrypt/decrypt> <name file>");
    exit(0);
  }
  size = read_file(&file, (int)argv[2]);
  prepare_tee_session(&ses);
  key_der = malloc(0x20u);
  memset(key_der, 173, 0x20u);
  v16 = strlen(&v21);
  memcpy(key_der, &v21, v16);
  mode = v13;
  if ( v13 )
    mode = 1;
  derive_key((int)&ses, (int)key_der, 0x20, mode);
  finalize_op(&ses, &file, size);
  if ( v13 )
    printf("Your FLAG %s\n", "Hello_world");
  save_file((const void **)&file, (int)argv[2], size);
  terminate_tee_session(&ses);
  free(key_der);
  return 0;
}

We see that there is a certain derive of a key and the finalize function of the decryption or encryption operation. The key is derive on the basis of the SUPERSECRETSTRING string padded to length with 32 bytes 0xad. We seen in func read_file that file will padding with zero bytes to length multiple 16. When a file is encrypted / decrypted, it is saved to the same file. Ok, lets check func derive_key and finalize_op.

nt __fastcall derive_key(int *ses, int key, int key_len, int mode)
{
  int result; // r0
  int v9; // [sp+0h] [bp-58h]
  TEEC_Operation op; // [sp+4h] [bp-54h]

  memset(&op, 0, 0x3Cu);
  op.paramTypes = 21;
  op.params[0].tmpref = key;
  op.params[1].tmpref = key_len;
  op.params[3].tmpref = mode;
  result = TEEC_InvokeCommand(ses + 2, 1, &op, &v9);
  if ( result )
    errx(1, "TEEC_InvokeCommand failed with code 0x%x origin 0x%x", result, v9);
  return result;
}

void __fastcall finalize_op(int ses, void **file, size_t size)
{
  void *out_buf; // r6
  int v7; // r2
  int v8; // [sp+0h] [bp-58h]
  TEEC_Operation s; // [sp+4h] [bp-54h]

  memset(&s, 0, 0x3Cu);
  out_buf = malloc(size);
  s.paramTypes = 101;
  s.params[0].tmpref = (uint32_t)*file;
  s.params[1].tmpref = size;
  s.params[3].tmpref = (uint32_t)out_buf;
  s.imp = size;
  v7 = TEEC_InvokeCommand(ses + 8, 2, &s, &v8);
  if ( v7 )
    errx(1, "TEEC_InvokeCommand failed with code 0x%x origin 0x%x", v7, v8);
  free(*file);
  *file = out_buf;
}

derive_key sends key and mode (dec / enc), finalize_op sends input data and output buffer to TA. There is nothing to see right now, close client and open TA with the same way as infirst task. We find TA_InvokeCommandEntryPoint function by xrefs to same string. Found 2 supported command is finalize_op, and derive_key named by the same names in client.

int __fastcall TA_InvokeCommandEntryPoint(int sessionContext, int commandID, int paramTypes, int params)
{
  if ( commandID == 1 )
    return derive_key((_DWORD *)sessionContext, paramTypes, (int *)params);
  if ( commandID == 2 )
    return finalize_op(sessionContext, paramTypes, params);
  sub_5DA("TA_InvokeCommandEntryPoint", 213, 1, 1, "Command ID 0x%x is not supported", commandID, params, paramTypes);
  return 0xFFFF000A;
}

signed int __fastcall derive_key(_DWORD *sessionContext, int paramTypes, TEEC_Parameter *params)
{
  int xor_key; // [sp+18h] [bp+8h]
  int v8; // [sp+1Ch] [bp+Ch]
  int size; // [sp+28h] [bp+18h]
  int key; // [sp+2Ch] [bp+1Ch]
  int v12; // [sp+34h] [bp+24h]
  int i; // [sp+38h] [bp+28h]
  int v14; // [sp+3Ch] [bp+2Ch]

  v12 = 21;
  if ( paramTypes != 21 )
    return 0xFFFF0006;
  *sessionContext = params[2].tmpref;
  if...
  v14 = allocate_operation(sessionContext + 1, 0x10000110u, *sessionContext, 0x100u);// TEE_ALG_AES_CBC_NOPAD
  if ( v14 )
  {
    sub_5DA("derive_key", 44, 1, 1, "Failed to allocate operation");
    sessionContext[1] = 0;
  }
  else
  {
    key = params->tmpref;
    size = params[1].tmpref;
    getprop(0xFFFFFFFF, "unictf.2020.data.key", &xor_key);// 0x41
    for ( i = 0; i <= 15; ++i )
      *(_BYTE *)(i + key) ^= (_BYTE)i + (_BYTE)xor_key;
    v14 = allocate_transient_object(0xA0000010, 256, sessionContext + 2);// TEE_TYPE_AES
    if ( v14 )
    {
      sub_5DA("derive_key", 63, 1, 1, "Failed to allocate transient object");
      sessionContext[2] = 0;
    }
    else
    {
      sub_1140E((int)&v8, 0xC0000000, key, size);// secret value
      v14 = TEE_PopulateTransientObject(sessionContext[2], &v8, 1);
      if ( !v14 )
        return 0;
      sub_5DA("derive_key", 72, 1, 1, "TEE_PopulateTransientObject failed, %x", v14);
    }
  }
  if...
  sessionContext[1] = 0;
  if...
  sessionContext[2] = 0;
  return v14;
}

Okey general key derive mechanism is:

key = list(b"SUPERSECRETSTRING"+b"\xad"*(32-17))
for i in range(16):
    key[i]^=(0x41+i)

We check finalyze func to get iv

signed int __fastcall finalize_op(int *session, int paramtypes, TEEC_Parameter *params)
{
  int v6; // r3
  char iv[16]; // [sp+1Ch] [bp+8h]
  int v10; // [sp+2Ch] [bp+18h]
  int v12; // [sp+34h] [bp+20h]

  v12 = 101;
  if ( paramtypes != 101 )
    return 0xFFFF0006;
  v10 = TEE_SetOperationKey(session[1], session[2]);
  if ( v10 )
  {
    sub_5DA("finalize_op", 107, 1, 1, "TEE_SetOperationKey failed %x", v10);
    if ( session[1] )
      sub_340A(session[1]);
    session[1] = 0;
    if ( session[2] )
      sub_111F6(session[2]);
    session[2] = 0;
    v6 = v10;
  }
  else
  {
    memset((int)iv, 0, 0x10);
    sub_3CBA(session[1], iv, 0x10);
    v6 = sub_4062(session[1], params->tmpref, params[1].tmpref, params[2].tmpref, &params[3].tmpref);
  }
  return v6;
}

Now we can try to decrypt flag

from Crypto.Cipher import AES

flag=open("flag.enc","rb").read()
key = list(b"SUPERSECRETSTRING"+b"\xad"*(32-17))
for i in range(16):
    key[i]^=(0x41+i)
key_b=b""
for i in key:
    key_b+=i.to_bytes(1,"little")
cipher = AES.new(key_b, AES.MODE_CBC, b"\x00"*16)
cipher.decrypt(flag)
>>> b'unictf{A4@1n_F1l3_ENCRYPTION}\n\x00\x00'
